Instrumentation Cable

We supply a wide ambit of Instrumentation Cables, which are suitable for an even wider variety of applications across various industries where manufacturing as well as processing operations are measured and controlled by electronic means. For optimum performance, these interconnection cables have to be consistent, stout and should offer shielded protection, whether an inclusive screen or separately and collectively screened cable are made to resist electromagnetic interference.TheseInstrumentation Cablesoffer superb flexibility for usage in intercom, control,audio, energy management and alarm circuits. These insure dependable performance in unforgiving environments and have very diverse applications. These cables convey low energy electrical indications employed for monitoring or controlling electrical power systems as well as their allied processes.

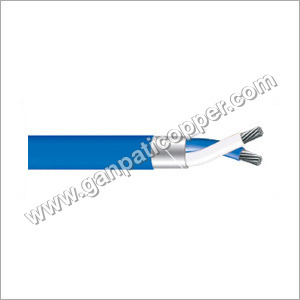

IPE-101 Instrumentation Cable
close
IPE-101 Instrumentation Cable
IPE-101

IPE-101 Instrumentation Cable

SPECIFICATIONS

  • Conductor : Solid, Multistrand, Electrolytic Grade Conductor Bare Copper, TPC As per IS 8130:84
  • Insulation : PE Insulation
  • Construction :Twisted
  • Shielding: Almylar Shield with ATC Drain Wire
  • Inner Sheath : PVC / FR PVC/FRLS PVC /HR PVC
  • Armouring : Galvanized Iron Wire, Round / Flat Strip
  • Operating Temp: 85°c

FEATURES

  • Max. Temp. Up to 85°C
  • Excellent Physical Properties
  • Excellent Di-Electric Constant
  • Excellent Flame Retardant Propery
  • Good Heat Resistivity
  • High Thermal Endurance
  • Good Moisture, Chemical Abrasion Resistance

AVAILABLE OPTIONS

  • Metal Coverings
  • Available with Zero Halogen property
  • Available with fire Retardant property
  • Special Colour Code

Construction Details And Dimensions

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

IPE101

7

0.160

0.14

0.48

Twisted

4.1

30

IPE102

1

0.510

0.2

0.51

Twisted

4.2

32.1

IPE103

7

0.200

0.22

0.59

Twisted

5.6

37

IPE104

7

0.274

0.42

0.81

Twisted

6

47

IPE105

14

0.200

0.45

0.84

Twisted

6.1

48.6

IPE106

1

0.810

0.5

0.81

Twisted

6

54

IPE107

7

0.300

0.5

0.89

Twisted

6.2

54

IPE108

24

0.200

0.75

1.1

Twisted

6.6

64

IPE109

14

0.300

1

1.26

Twisted

7.4

72

IPE110

3

0.711

1.2

1.39

Twisted

7.7

77.8

IPE111

40

0.200

1.25

1.42

Twisted

8

82.2

IPE112

1

1.290

1.3

1.29

Twisted

8

86.5

IPE113

19

0.300

1.3

1.52

Twisted

8.2

86.5

IPE114

21

0.300

1.5

1.55

Twisted

8.3

92

IPE115

35

0.300

2.5

2

Twisted

10.6

138

ITF-101 Instrumentation Cable
close
ITF-101 Instrumentation Cable
ITF-101

ITF-101 Instrumentation Cable

SPECIFICATIONS

  • Conductor : Solid, Multistrand, Electrolytic Grade Conductor Bare Copper,SPC, TPC As per IS 8130:84
  • Insulation : Extruded FEP Insulated
  • Construction :Twisted/Flat
  • Outer jacket :Extruded FEP Insulated
  • Outer Braiding : Stainless Steel Wire
  • Operating Temp. : 200°C

FEATURES

  • Max. Temp. Up to 200°C
  • Suitable for High Voltage use
  • Low Dielectric Constant
  • Excellent Flame Retardant Property
  • Smaller Diameter
  • High Mechancial Strength
  • Good Moisture, Chemical Abrasion Resistance

AVAILABLE OPTIONS

  • Metal & Taped Shielding
  • Overall Asbestos Braiding
  • Special Colour Code
Construction Details And Dimensions

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

ITF101

7

1.62

0.12

0.46

T/F

2.42

10.7

ITF102

7

0.160

0.14

0.48

T/F

2.52

14.2

ITF103

1

0.510

0.2

0.51

T/F

3.1

15

ITF104

7

0.200

0.22

0.59

T/F

3.4

17

ITF105

7

0.274

0.42

0.81

T/F

3.8

28

ITF106

14

0.200

0.45

0.84

T/F

3.88

29

ITF107

1

0.810

0.5

0.81

T/F

3.9

30

ITF108

7

0.300

0.5

0.89

T/F

4.1

30

ITF109

24

0.200

0.75

1.1

T/F

4.9

40

ITF110

14

0.300

1

1.26

T/F

5.1

50

ITF111

3

0.711

1.2

1.39

T/F

5.3

58.6

ITF112

40

0.200

1.25

1.42

T/F

5.4

65

ITF113

1

1.290

1.3

1.29

T/F

5.2

75

ITF114

19

0.300

1.3

1.52

T/F

5.58

75

ITF115

21

0.300

1.5

1.55

T/F

5.8

80

ITF116

35

0.300

2.5

2

T/F

6.8

100



ITF-201 Instrumentation Cable
close
ITF-201 Instrumentation Cable
ITF-201

ITF-201 Instrumentation Cable

SPECIFICATIONS

  • Conductor : Solid, Multistrand, Electrolytic Grade Conductor Bare Copper,SPC, TPC As per IS 8130:84
  • Insulation : Extruded FEP Insulated
  • Construction :Twisted
  • Outer jacket :Extruded FEP Insulated
  • Outer Braiding : Almylar Screen With ATC Drain wire
  • Operating Temp. : 200°C

FEATURES

  • Max. Temp. Up to 200°C
  • Suitable for High Voltage use
  • Low Dielectric Constant
  • Excellent Flame Retardant Property
  • Smaller Diameter
  • Higher Resist to Electomagnetic Signal
  • Good Mechanical Strength

AVAILABLE OPTIONS

  • Metal Covering
  • Metal Shielding
  • Special Colour Code

Construction Details And Dimensions

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

ITF101

7

1.52

0.12

0.46

Twisted

2.5

14.66

ITF102

7

0.160

0.14

0.48

Twisted

2.6

16.2

ITF103

1

0.510

0.2

0.51

Twisted

3.1

19.7

ITF104

7

0.200

0.22

0.59

Twisted

3.2

20.4

ITF105

7

0.274

0.42

0.81

Twisted

4

28.5

ITF106

14

0.200

0.45

0.84

Twisted

4.1

29.8

ITF107

1

0.810

0.5

0.81

Twisted

4

32

ITF108

7

0.300

0.5

0.89

Twisted

4.2

32

ITF109

24

0.200

0.75

1.1

Twisted

4.7

39

ITF110

14

0.300

1

1.26

Twisted

5

46.5

ITF111

3

0.711

1.2

1.39

Twisted

5.3

54.2

ITF112

40

0.200

1.25

1.42

Twisted

5.4

57

ITF113

1

1.290

1.3

1.29

Twisted

5.1

58.9

ITF114

19

0.300

1.3

1.52

Twisted

5.7

58.9

ITF115

21

0.300

1.5

1.55

Twisted

5.8

65

ITF116

35

0.300

2.5

2

Twisted

7

105

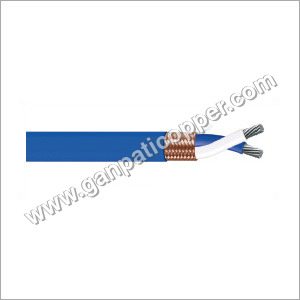

ITF-301 Instrumentation Cable
close
ITF-301 Instrumentation Cable
ITF-301

ITF-301 Instrumentation Cable

SPECIFICATIONS

  • Conductor : Solid, Multistrand, Electrolytic Grade Conductor Bare Copper,SPC, TPC As per IS 8130:84
  • Insulation : Extruded FEP Insulated
  • Construction :Twisted
  • Outer jacket :Extruded FEP Insulated
  • Isolater: Polymide Tape
  • Operating Temp. : 200°C

FEATURES

  • Max. Temp. Up to 200°C
  • Suitable for High Voltage use
  • Low Dielectric Constant
  • Excellent Flame Retardant Property
  • Smaller Diameter
  • Higher Resist to Electomagnetic Signal
  • Good Mechanical Strength
  • Good Moisture, Chemical Abrasion Resistance
  • Good Flexibility

AVAILABLE OPTIONS

  • Metal Covering
  • Asbestos Covering
  • Special Colour Code

Construction Details And Dimensions

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

ITF101

7

1.52

0.12

0.46

Twisted

2.6

13.36

ITF102

7

0.160

0.14

0.48

Twisted

2.7

14.8

ITF103

1

0.510

0.2

0.51

Twisted

2.8

24.2

ITF104

7

0.200

0.22

0.59

Twisted

2.9

24.9

ITF105

7

0.274

0.42

0.81

Twisted

4.1

33.56

ITF106

14

0.200

0.45

0.84

Twisted

4.2

35.9

ITF107

1

0.810

0.5

0.81

Twisted

4.2

36.8

ITF108

7

0.300

0.5

0.89

Twisted

4.3

36.8

ITF109

24

0.200

0.75

1.1

Twisted

4.8

46.5

ITF110

14

0.300

1

1.26

Twisted

5.2

59

ITF111

3

0.711

1.2

1.39

Twisted

5.4

67.5

ITF112

40

0.200

1.25

1.42

Twisted

5.5

73.5

ITF113

1

1.290

1.3

1.29

Twisted

5.6

75.8

ITF114

19

0.300

1.3

1.52

Twisted

5.7

75.8

ITF115

21

0.300

1.5

1.55

Twisted

5.8

78

ITF116

35

0.300

2.5

2

Twisted

7

105
