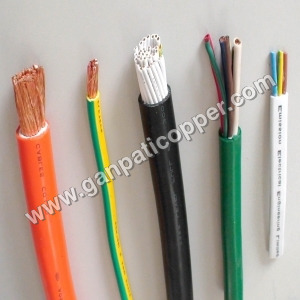

Cu Epr Cr Flexible Cables

Cu Epr Cr Flexible Cables
Cu Epr Cr Flexible Cables
Send Inquiry
Product Code : 10
Product Description

Category: Flexible Cables

  • Sub Category: Copper Cables 1.1 kV
  • Main Characteristic: Heat, Oil Resistant with Good Thermal Properties
  • Part No.: Ho7RN-F
  • Approval: IS 9968/Pt-1/1988

Product Features:

  • Easy to Handle
  • Very Good Insulation Properties
  • Long life
  • High Temperature Tolerance upto 120°C
  • Low bend Radius
  • Good fire Properties
  • Oil Resistance

Construction:

  • Class: 5 Stranded Tinned Copper Wire as per IS 8130
  • Insulation: EPR as per IS 6380/1984
  • Core Identification:
  • Core: Red / Black / White
  • Core: Red, Black
  • Core: Red,Yellow, Blue
  • Core: Red,Yellow, Blue and Black
  • Inner Sheath: CR as per IS 6380/1984
  • Outer Sheath: CR as per IS 6380/1984

Technical Data:

  • Insulation Resistance: 3670 Mega-Ohm-CM
  • Bending Radius: 8 X OD (OD = Overall Diameter of Cable)
  • Voltage Rated: 0.6/ 1.0 (1.2 kV)
  • Test Voltage: 3500 volts
  • Temperature Range: -25°C to + 90°C
  • Short Circuit Temp.: 250°C

Variants:

  • FR
  • FRLS

POWER FLEXIBLE CABLES - COPPER

Table – 1 Single core Rubber Insulated And Sheathed Flexible Cables according to IS:9968/Pt-1/1988


Core Size

Stranding(Minimum No. of Strands)

Nominal Thickness of Insulation (mm)

Nominal Overall Diameter (mm)

Approx. Weight (kg/km)

Max DC Resistance

at 20°C

Current Rating (Amp)

SQ MM

1 X 4.0

56/0.30

1

7.6

95.29

5.09

53

1 X 6.0

84/0.30

1

8.7

128.65

3.39

67

1 X 10.0

80/0.40

1.2

10.5

197.65

1.95

92

1 X 16.0

126/0.40

1.2

11.9

272.16

1.24

124

1 X 25.0

196/0.40

1.4

13.9

391.23

0.795

182

1 X 35.0

276/0.40

1.4

15.6

518.4

0.565

226

1 X 50.0

396/0/40

1.6

18.1

716.35

0.393

275

1 X 70.0

360/0.50

1.6

20.4

961.88

0.277

353

1 X 95.0

475/0.50

1.8

23

1244.11

0.21

430

1 X 120.0

608/0.50

1.8

25.2

1544.26

0.164

500

1 X 150.0

756/0.50

2

27.8

1899.5

0.132

577

1 X 185.0

925/0.50

2.2

30.6

2324.22

0.108

661

1 X 240.0

1221/0.50

2.4

33.9

2950.31

0.0817

781

1 X 300.0

1525/0.50

2.6

36.9

3596.18

0.0654

902

1 X 400.0

2013/0.50

2.8

41.6

4666.53

0.0495

1085

1 X 500.0

1769/0.50

3

45.9

5812.21

0.0391

1253

1 X 630.0

2257/0.50

3

50.3

7222.83

0.0292

1454
