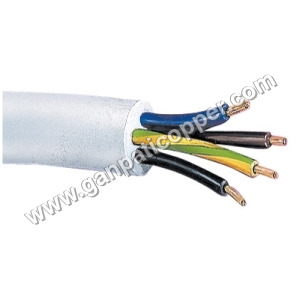

Under 100V Flexible Cables

Under 100V Flexible Cables
Under 100V Flexible Cables
Send Inquiry
Product Code : 18
Product Description

Category: Flexible Cables

  • Sub Category: Copper Cables 100 V
  • Approval: IS 2465

Product Features:

  • Easy to Handle
  • Very Good Insulation Properties
  • Mild Oil Resistance

Construction:

  • Class: 5 Stranded Annealed Plain Copper as per IS:8130:84
  • Insulation: PVC (Polyring Chloride) Type A as per IS 5831:84
  • Sheath: PVC (Polyvinyl Chloride) as per IS 5831:84 (For Multicore Cables)
  • Core Identification:
  • Core: Red, Black, White, Brown, Blue, Green, Grey, Violet, Yellow or Orange
  • Core: Red and Black
  • Core: Red,Yellow, Blue
  • Core: Red,White, Blue and Black
  • Inner Sheath: TRS as per IS 6380/1984
  • Outer Sheath: TRS as per IS 6380/1984

Technical Data:

  • Voltage Rated: Under 100 V
  • Temperature Range: -15°C to + 70°C
  • Short Circuit Temp.: 160°C

Variants:

  • FR
  • FRLS
  • HR-90°C

DIMENSIONAL TABLES POWER FLEXIBLE CABLES - COPPER

Table – Single core Rubber Insulated And Sheathed Flexible Cables according to IS: 9968/Pt-1/1988


Core Size

Stranding(Minimum No. of Strands)

Nominal Thickness of Insulation (mm)

Nominal Overall Diameter (mm)

Approx. Weight (kg/km)

Max DC Resistance

at 20°C

Current Rating (Amp)

SQ MM

2 X 0.5

16/0.21

0.6

7

65

39

7

2 X 0.75

24/0.21

0.6

7.4

75

26

10

2 X 1.0

32/0.21

0.6

7.6

85

19.5

12

2 X 1.5

30/0.26

0.6

8.2

100

13.3

16

2 X 2.5

50/0.26

0.7

9.7

145

7.98

20
