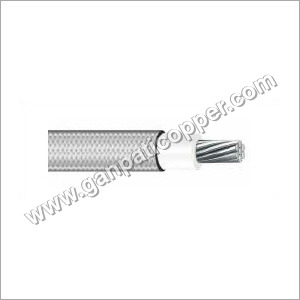

LFS-101 Lead Wire

Product Description

SPECIFICATIONS Conductor : Solid, Multistrand, Copper Material (Bare Copper,NPC, SPC, TPC)Insulation : Extruded Silicon / Fiber Glass with High Temp.Varnish InsulatedVoltage rating : Up to 1.1 KVOperating Temp. : 200 deg CColor code : As per Customer Requirement FEATURES Max. Temp. Up to 200 deg CSmooth SurfaceExcellent FlexibilityExcellent resist to Oil, moist,fluids and chemicalsExcellent Di-electric PropertiesHigh Temperature & Voltage Rating.Good heat resistivity AVAILABLE OPTIONS Available in Different colors 25oV/60oV/110oV As per Customer RequirementMetal Covering CONSTRUCTION DETAILS AND DIMENSIONS S.NO SIZE Number ofStrands /Dia of each Strand Dia of Conductor for Cross SectionalArea ET 250 V E 600 V EE 1000 V Max Res.OHMS/KM at 20c Cure nt Rating (amps Max Weight gm/mtr OD of insulation OD of insulation OD of insulation SWG AWG (MM) (MM) MM2 Min(mm) Max(mm) Min(mm) Max(mm) Min(mm) Max(mm) LF101 26 19/38 19/0.10 0.51 0.149 1.51 1.91 2.01 2.11 2.31 2.71 125 3 9.13 LF102 24 1/24 1/0.51 0.51 0.204 1.51 1.91 2.01 2.11 2.31 2.71 87 4 9.62 LF103 24 7/32 7/0.20 0.61 0.219 1.61 2.01 2.11 2.21 2.41 2.81 82 4 10.24 LF104 24 19/36 19/0.13 0.64 0.252 1.64 2.04 2.14 2.24 2.44 2.84 79 4 10.68 LF105 22 1/22 1/0.64 0.64 0.321 1.64 2.04 2.14 2.24 2.44 2.84 55 7.3 11.3 LF106 22 7/30 7/0.25 0.76 0.343 1.76 2.16 2.26 2.36 2.56 2.96 52 7.3 12.08 LF107 22 19/34 19/0.16 0.81 0.382 1.81 2.21 2.31 2.41 2.61 3.01 49 7.3 12.67 LF108 20 1/20 1/0.81 0.81 0.515 1.81 2.21 2.31 2.41 2.61 3.01 34 11 13.87 LF109 20 7/28 7/0.32 0.97 0.562 1.97 2.37 2.47 2.57 2.77 3.17 32 11 15.07 LF110 20 19/32 19/0.20 1.02 0.596 2.02 2.42 2.52 2.62 2.82 3.22 30 11 15.62 LF111 18 7/26 7/0.40 1.22 0.879 2.72 2.96 3.02 3.42 20 16 19.13 LF112 18 19/30 19/0.25 1.27 0.932 2.77 3.01 3.07 3.47 18 16 19.85 LF113 16 19/29 19/0.29 1.45 1.254 2.95 3.19 3.25 3.85 14 22 25.27 LF114 15 19/28 19/0.32 1.6 1.524 3.1 3.34 3.4 4 12 26 28.52 LF115 14 19/27 19/O.36 1.83 1.933 3.33 3.57 3.63 4.23 9 32 33.38 LF116 13 19/26 19/0.40 2 2.387 3.5 3.74 3.8 4.4 7 35 38.36 LF117 12 19/25 19/0.45 2.31 3.021 3.81 4.05 4.11 4.71 5 41 45.7 LF118 12 37/28 37/0.32 2.26 2.975 3.76 4 4.06 4.66 6 41 45.03 LF119 11 19/24 19/0.50 2.5 3.73 4 4.24 4.3 4.9 4 45 53.09 LF120 10 19/22 19/0.65 3.35 6.304 4.85 5.09 5.15 5.75 2 55 80.74 LF121 10 37/26 37/0.40 2.82 4.64 3.38 3.82 3.88 3.82 3 50 49.66 LK121 11 19/24 19/0.50 2.5 3.73 2.82 3 3.1 3.3 4 45 38.74 LK122 10 19/22 19/0.65 3.35 6.304 3.67 3.85 3.95 4.15 2 55 63.42 LK123 10 37/26 37/0.4 2.82 4.649 3.14 3.32 3.42 3.62 3 50 47.58
