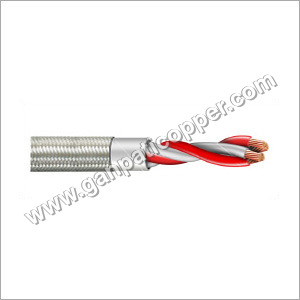

RTD Extension Cable
950 INR
Product Details:
- Diameter 5 mm to 8 mm (as per configuration)
- Core Number 2 Core/3 Core/4 Core
- Dielectiric Strength > 1500V AC/min
- Rated Temperature -60C to +200C
- Impedance Low impedance (suitable for signal transmission)
- Install Type Fixed or Flexible laying
- Core Material Copper
- Click to View more
X
RTD Extension Cable Price And Quantity
- 100 Kilograms
- 950 INR
RTD Extension Cable Product Specifications
- -60C to +200C
- PTFE (Teflon)
- 0.5 sq mm, 1.0 sq mm, 1.5 sq mm
- RTD Extension Cable
- PVC
- Industrial temperature sensing, Automation systems
- Varies as per length and configuration
- Tinned Copper Braid
- Grey
- >30N/mm
- Low impedance (suitable for signal transmission)
- -60C to +200C
- Fixed or Flexible laying
- 2 Core/3 Core/4 Core
- 5 mm to 8 mm (as per configuration)
- > 1500V AC/min
- Copper
- 10 m, 25 m, 50 m, custom lengths available
- -40C to +85C
- Twisted Pair, Shielded
- PTFE (Teflon)
- Excellent flexibility, High temperature resistance, Accurate transmission, Durable insulation, Minimal signal loss
- Copper
- 2, 3, or 4 (as per RTD type)
- 300 V
- Stranded
- RTD sensors, process control, temperature measurement instrumentation
- Optional, Stainless Steel available
- Round
- Copper, PTFE, PVC
- Grey
- Standard locking connectors offered
- Varies by length and conductor size
- Silver or as per connector standard
RTD Extension Cable Trade Information
- As per demand Per Week
- 2-3 Days
Product Description
Specifications- Conductor : Solid, Multistrand, Copper Material (Bare Copper,nickel Plated Copper, Silver Plated Copper)
- Core Insulation : Ptfe Insulated
- Construction : Twisted
- Outer Jacket : Ptfe Sheathed
- Operating Temp : 260c
- Color Code : According To Din
Features
- Max. Temp. Up To 260c
- Excellent Heat Resistant
- Outstanding Insulating Properties
- Good Thermal Stability Customer Requirement
- Good Mechanical Strength
- Flame Retardant Chemical 8 Heat
- Passes Jss 51034 Flame Test Resistance Purpose
- Metal Braiding Over Jacket
- Twisted Shielded Pair
- Color Code As Per
- Asbestos Braiding For Better
CONSTRUCTION DETAILS AND DIMENSIONS
| Cable Size | No.of Strands | Strand Diameter (Mm) | Area Of Conductor (Mm) | Bare Conductor Dia(Mm) | Formation | Cable Dimension(Mm) (Max) | Cable Wt (Approx) Gm/meter |
| Rt101 | 7 | 0.122 | 0.08 | 0.36 | Twisted | 2.4 | 9.5 |
| Rt102 | 7 | 0.152 | 0.12 | 0.45 | Twisted | 2.5 | 10.1 |
| Rt103 | 7 | 0.193 | 0.22 | 0.57 | Twisted | 2.7 | 13.8 |
| Rt104 | 7 | 0.274 | 0.42 | 0.81 | Twisted | 3.2 | 22.1 |
| Rt105 | 3 | 0.711 | 1.2 | 1.39 | Twisted | 4.6 | 59.1 |
| Rt106 | 7 | 0.200 | 0.14 | 0.48 | Twisted | 2.7 | 12.2 |
| Rt107 | 1 | 0.160 | 0.2 | 0.51 | Twisted | 2.9 | 13.7 |
| Rt108 | 7 | 0.510 | 0.45 | 0.82 | Twisted | 3.4 | 26 |
| Rt109 | 1 | 0.200 | 0.5 | 0.81 | Twisted | 3.4 | 28 |
| Rt110 | 7 | 0.274 | 0.5 | 0.9 | Twisted | 3.6 | 28 |
| Rt111 | 1 | 0.810 | 0.75 | 1.02 | Twisted | 3.8 | 43 |
| Rt112 | 14 | 0.300 | 1 | 1.26 | Twisted | 4.5 | 58 |
| Rt113 | 1 | 1.020 | 1.3 | 1.29 | Twisted | 4.7 | 115 |
| Rt114 | 19 | 0.300 | 1.3 | 1.52 | Twisted | 4.9 | 115 |
| Rt115 | 40 | 0.200 | 0.2 | 1.42 | Twisted | 4.5 | 60 |
| Rt116 | 21 | 0.300 | 1.5 | 1.55 | Twisted | 5 | 73 |
| Rt117 | 1 | 1.788 | 2.5 | 1.788 | Twisted | 5.8 | 120 |
| Rt118 | 56 | 0.300 | 4 | 2.53 | Twisted | 7.8 | 170 |
Precise and Reliable Temperature Sensing
Designed specifically for RTD sensors and temperature measurement instrumentation, this extension cable maintains minimal signal loss over extended runs. Its stable signal transfer capabilities and low impedance ensure accurate readings crucial for process control and automation systems, supporting efficient industrial operations.
Durable for Demanding Environments
With its PTFE insulation, stranded copper cores, robust PVC jacket, and optional stainless steel armor, the cable withstands UV, oil, and mechanical stress. Its wide operating temperature range makes it suitable for both indoor and outdoor applications, while flame-retardant and RoHS compliance add safety and environmental reliability.
FAQs of RTD Extension Cable:
Q: How does the RTD Extension Cable ensure accurate temperature signal transmission?
A: The RTD Extension Cable is designed with stranded copper conductors, PTFE (Teflon) insulation, and a tinned copper braid shield to minimize signal loss and interference, maintaining signal integrity over long distances. Its low impedance further supports clear, accurate temperature signal transmission for precise measurement.Q: What are the recommended installation practices for this extension cable?
A: When installing the RTD Extension Cable, maintain a minimum bending radius of 10 times the outer diameter to preserve cable integrity. It is suitable for both fixed and flexible install types and can be routed indoors or outdoors given its UV and oil resistance. Always follow best practices for cable fixing and connection to avoid unnecessary stress.Q: When should the armored (stainless steel) version be used?
A: The armored version, featuring stainless steel protection, is ideal for hazardous or mechanically demanding environments where the cable may be exposed to impact, abrasion, or heavy industrial activity, providing additional protection for the internal conductors.Q: Where is this cable most commonly applied?
A: This extension cable is widely used in industrial temperature sensing, automation systems, and process control instrumentation. Its versatility and robust build make it suitable for manufacturing plants, power stations, laboratories, and other sites requiring reliable RTD sensor connections.Q: What are the primary benefits of using this cable for RTD sensor applications?
A: Key benefits include stable signal processing at extended lengths, high flexibility for easy installation, robust insulation against temperature extremes and harsh chemicals, and compliance with safety and environmental standards. These attributes ensure consistent, reliable operation in demanding conditions.Q: How does the cable comply with safety and environmental standards?
A: The cable meets IEC 60332-1 flame retardant requirements and is RoHS compliant, meaning it is free from hazardous substances such as lead. The PTFE insulation and PVC jacket additionally offer high chemical resistance, ensuring safe, eco-friendly operation throughout its service life.Tell us about your requirement
