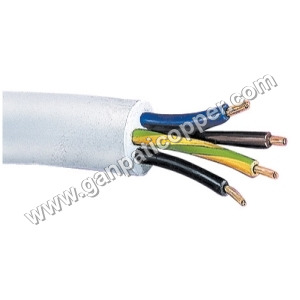

Cu Silicon Flexible Cables

Cu Silicon Flexible Cables
Cu Silicon Flexible Cables
Send Inquiry
Product Code : 15
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Kilograms/Kilograms
  • Price Range
  • 900.00 - 920.00 INR
Product Description

Category: Flexible Cables

  • Sub Category: Copper Cables 1.1 kV
  • Main Characteristics: Flexible and High Temperature
  • Part No.: Silicon - 180
  • Approval: IS 9968/Pt-1/1988

Product Features:

  • Easy to Handle
  • Very Good Insulation Properties
  • Long Life
  • High Temperature Tolerance up to 150°C
  • Low Bend Radius
  • Good Fire Properties
  • Oil Resistance

Construction:

Class: 5 Stranded Tinned Copper Wire as per IS 8130

  • Insulation: Silicon as per IS 6380/1984
  • Core Identification:
  • Core: Red / Black / White
  • Core: Red and Black
  • Core: Red,Yellow, Blue
  • Core: Red,Yellow, Blue and Black
  • Inner Sheath: Silicon as per IS 6380/1984
  • Outer Sheath: Silicon as per IS 6380/1984

Technical Data:

  • Insulation Resistance: 870 Mega-Ohm-Km
  • Bending Radius: 8 X OD (OD = Overall Diameter of Cable)
  • Voltage Rated: 0.6/ 1.0 (1.2 kV)
  • Test Voltage: 3500 Volts
  • Temperature Range: -25°C to + 60°C
  • Short Circuit Temp.: 350°C

Variants:

  • FR
  • 200 Degree

DIMENSIONAL TABLES POWER FLEXIBLE CABLES - COPPER

Table – Single core SILICON Insulated Flexible Cables according to IS: 9968/Pt-1/1988


Core Size

Stranding(Minimum No. of Strands)

Nominal Thickness of Insulation (mm)

Nominal Overall Diameter (mm)

Approx. Weight (kg/km)

Max DC Resistance

at 20°C

Current Rating (Amp)

SQ MM

1 X 4.0

56/0.30

1

7.6

95.29

5.09

42

1 X 6.0

84/0.30

1

8.7

126.65

3.39

54

1 X 10.0

80/0.40

1.2

10.5

197.81

1.95

73

1 X 16.0

126/0.40

1.2

11.9

272.16

1.24

98

1 X 25.0

196/0.40

1.4

13.9

391.23

0.795

129

1 X 35.0

276/0.40

1.4

15.6

518.4

0.565

158

1 X 50.0

396/0.40

1.6

18.1

716.35

0.393

198

1 X 70.0

360/0.50

1.6

20.4

961.88

0.277

245

1 X 95.0

475/0.50

1.8

23

1244.11

0.21

292

1 X 120.0

608/0.50

1.8

25.2

1544.26

0.164

344

1 X 150.0

756/0.50

2

27.8

1899.5

0.137

391

1 X 185.0

925/0.50

2.2

30.6

2324.22

0.108

448

1 X 240.0

1221/0.50

2.4

33.9

2950.31

0.0817

528

1 X 300.0

1525/0.50

2.6

36.9

3596.18

0.0654

608

1 X 400.0

1525/0.5

2.8

41.6

4666.3

0.0495

734


Trade Information
  • Supply Ability
  • As per demand Per Week
  • Delivery Time
  • 2-3 Days
