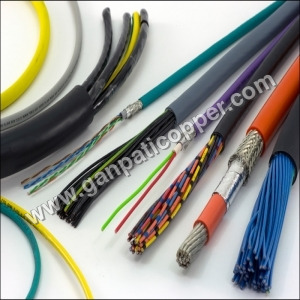

AL XLPE PVC Unarmoured Cables
Product Details:
AL XLPE PVC Unarmoured Cables Price And Quantity
- 100 Kilograms
- 900.00 - 950.00 INR
AL XLPE PVC Unarmoured Cables Trade Information
- As per demand Per Week
- 2-3 Days
Product Description
Category: Rigid Cables
- Sub Category: Un-armoured Cables 1.1 kV
- Type Ref.: A2XY
- Standards: IS: 7098/Pt-1/1988
Product Features:
- Light Weight
- Good Thermal Properties than PVC Variant
- Good Strength than PVC Variant
- Low Current Leakage than PVC Variant
Construction:
- Class: 2 Stranded Aluminium Wire as per IS 8130
- Insulation: XLPE as per IS 7098/Pt-1/1988
- Core Identification:
- Core: Red / Black / White
- Core: Red and Black
- Core: Red,Yellow, Blue
- Core: Red, Yellow, Blue and Black
- Inner Sheath: PVC ST2 Grade as per IS 5831
- Outer Sheath: PVC ST2 Grade as per IS 5831
Technical Data:
- Insulation Resistance: 1 X 1014 Ohm-CM
- Bending Radius: 12 X OD (OD = Overall Diameter of Cable)
- Voltage Rated: 650 / 1100 Volts
- Test Voltage: a.c.3 kV (rms)
- Temperature Range: -15°C to + 90°C
- Short Circuit Temp.: 250°C
Variants:
- FR
- FRLS
TABLE - 1 SINGLE CORE ALUMINIUM CONDUCTOR XLPE INSULATED AND PVC SHEATHED UNARMOURED CABLE ACCORDING TO IS: 7098/PT-1/1988
| Core Size | Stranding(Minimum No. of Strands) | Nominal Thickness of Insulation (mm) | Cable Diameter (mm) | Approx. Weight (kg/km) | Max DC Resistance at 20°C | Current Rating (Amp) |
| SQ MM | ||||||
| 1 X 4.0 | 3 | 0.7 | 8 | 65 | 7.41 | 31 |
| 1 X 6.0 | 3 | 0.7 | 8.5 | 76 | 4.61 | 39 |
| 1 X 10.0 | 7 | 0.7 | 9.5 | 90 | 3.08 | 53 |
| 1 X 16.0 | 7 | 0.7 | 10 | 115 | 1.91 | 73 |
| 1 X 25.0 | 7 | 0.9 | 12 | 180 | 1.2 | 98 |
| 1 X 35.0 | 7 | 0.9 | 13 | 240 | 0.868 | 121 |
| 1 X 50.0 | 19 | 1 | 14 | 310 | 0.641 | 150 |
| 1 X 70.0 | 19 | 1.1 | 16 | 385 | 0.443 | 187 |
| 1 X 95.0 | 19 | 1.1 | 17.5 | 470 | 0.329 | 230 |
| 1 X 120.0 | 37 | 1.2 | 19 | 470 | 0.253 | 268 |
| 1 X 150.0 | 37 | 1.4 | 21.5 | 600 | 0.206 | 309 |
| 1 X 185.0 | 37 | 1.6 | 23.5 | 710 | 0.164 | 360 |
| 1 X 240.0 | 61 | 1.7 | 26 | 900 | 0.125 | 433 |
| 1 X 300.0 | 61 | 1.8 | 28.5 | 1075 | 0.1 | 501 |
| 1 X 400.0 | 61 | 2 | 33 | 1385 | 0.0778 | 596 |
| 1 X 500.0 | 61 | 2.2 | 36 | 1650 | 0.0605 | 693 |
| 1 X 630.0 | 91 | 2.4 | 40 | 2100 | 0.0469 | 814 |
| 1 X 800.0 | 91 | 2.6 | 46. | 2730 | 0.0221 | 890 |
| 1 X 1000.0 | 91 | 2.8 | 52.0 | 3350 | 0.0176 | 1050 |
