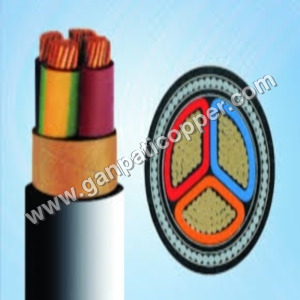

CU PVC PVC Unarmoured Cables

CU PVC PVC Unarmoured Cables
CU PVC PVC Unarmoured Cables
Send Inquiry
Product Code : 03
Product Description

Category: Rigid Cables

  • Sub Category: Un-armoured Cables 1.1 kV
  • Type Ref.: YY
  • Standards: IS: 1554/Pt-1/1988

Product Features:

  • Requires Less Space For Insulation
  • Better Physical Strength than Aluminium
  • Better Fire Properties than XLPE Variant
  • Better UV Properties than XLPE Variant
  • Better Flexibility than XLPE Variant

Construction:

  • Class: 2 Stranded Copper Wire as per IS 8130
  • Insulation: PVC Type A or C as per IS 7098/Pt-1/1988
  • Core Identification:
  • Core: Red / Black / White
  • Core: Red and Black
  • Core: Red,Yellow, Blue and Black
  • Core: Red, Yellow, Blue, Black and Grey
  • Core and above: Two adjacent cores (Counting and direction cores) in each layer, Blue and Yellow, remaining cores Grey
  • Inner Sheath: PVC (Polyvinyl Chloride) ST1 or ST2 Grade as per IS 5831
  • Outer Sheath: PVC (Polyvinyl Chloride) ST1 or ST2 Grade as per IS 5831

Technical Data:

  • Insulation Resistance: 1 X 1013 Ohm-CM
  • Bending Radius: 10 X OD (OD = Overall Diameter of Cable)
  • Voltage Rated: 650 / 1100 Volts
  • Test Voltage: a.c.3 kV (rms)
  • Temperature Range: -15°C to + 70°C
  • Short Circuit Temp.: 160°C

Variants:

  • FR
  • FRLS
  • HR-90 Degree
