RTD Cable

RTD Cables (resistance temperature detectors (cables), are employed to carry the RTD indications to the control room as well as field mounted instruments. Based on the configuration, these are accessiblefor simplex operation. The cables are manufactured as the latest amendments and also aid the sensors to measure temperature. These come with a fine length and are made of pure material, typically nickel, platinum, or copper. The cables aid to interconnecting RTD sensors with the process instrumentation. Accessible in straight or coverable cable configurations, these wires are extremely functional. At lower temperatures RTD Cables are used for their elementary operation and greater sensitivity as well as stability. These are connected to the temperature recording or process control instrumentation by making use of ordinary copper instrumentation cable.
RT-301 RTD Cable
close
RT-301 RTD Cable
RT-301

RT-301 RTD Cable

Specifications

  • Conductor : Solid, Multistrand, Copper Material (Bare Copper,nickel Plated Copper, Silver Plated Copper)
  • Core Insulation : Ptfe Insulated
  • Construction : Twisted
  • Lsolator : Ptfe Insulation
  • Screening : Copper Screening
  • Outer Jacket : Ptfe Sheathed
  • Operating Temp: 260 °c
  • Color Code : According To Din

Features

  • Max. Temp. Up To 260°c
  • Excellent Heat Resistant
  • Outstanding Insulating Properties
  • Very Good Chemical Resistivity
  • Good Abrasion Resistance
  • Good Thermal Stability
  • Non-flammability
  • Passes Jss 51034 Flame Test

 Available Options

  • Twisted / Shielded Triad
  • Color Code As Per Customer Requirement
  • Available With 1.1 Kv Grade
  • Asbestos Braiding For Better Chemical & Heat Resistance Purpose
 CONSTRUCTION DETAILS AND DIMENSIONS

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

Rt301

7

0.122

0.08

0.36

Twisted

3

18

Rt302

7

0.152

0.12

0.45

Twisted

3.1

20

Rt303

7

0.193

0.22

0.57

Twisted

3.4

27

Rt304

7

0.274

0.42

0.81

Twisted

3.9

36.6

Rt305

3

0.711

1.2

1.39

Twisted

5.2

74

Rt306

7

0.200

0.14

0.48

Twisted

3.8

20

Rt307

1

0.160

0.2

0.51

Twisted

4

27

Rt308

7

0.510

0.45

0.82

Twisted

4.6

37

Rt309

1

0.200

0.5

0.81

Twisted

4.6

40

Rt310

7

0.274

0.5

0.9

Twisted

4.75

40

Rt311

1

0.810

0.75

1.02

Twisted

5

57

Rt312

14

0.300

1

1.26

Twisted

5.5

65

Rt313

1

1.020

1.3

1.29

Twisted

5.7

85

Rt314

19

0.300

1.3

1.52

Twisted

6.2

85

Rt315

40

0.200

1.25

1.42

Twisted

5.6

54

Rt316

21

0.300

1.5

1.55

Twisted

6

94

Rt317

1

1.788

2.5

1.788

Twisted

6.96

150

Rt318

56

0.300

4

2.53

Twisted

8.76

215

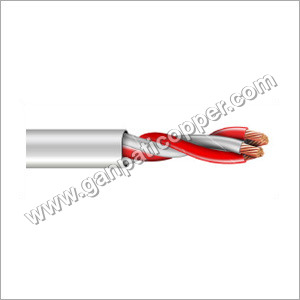

RT-501 RTD Cable
close
RT-501 RTD Cable
RT-501

RT-501 RTD Cable

Specifications
  • Conductor : Solid, Multistrand, Copper Material (Bare Copper,Nickel Plated Copper, Silver Plated Copper)
  • Core Insulation : Ptfe Insulated
  • Construction : Twisted
  • Outer Jacket : Extruded Silicon Sheathed
  • Operating Temp. : 200 °c
  • Color Code : According To Din

Features

  • Max. Temp. Up To 200°c
  • Outstanding Insulating Properties
  • Low Dielectric Constant
  • Excellent Flexibility
  • Non-flammability

Available Options

  • Shielding Of Tape & Metal
  • Color Code As Per Customer Requirement
  • Available With 1.1 Kv Grade
  • Meta Covering
CONSTRUCTION DETAILS AND DIMENSIONS



Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

Rt501

7

0.122

0.08

0.36

Twisted

3.1

10

Rt502

7

0.152

0.12

0.45

Twisted

3.4

11

Rt503

7

0.193

0.22

0.57

Twisted

3.7

20

Rt504

7

0.274

0.42

0.81

Twisted

4.3

30

Rt505

3

0.711

1.2

1.39

Twisted

6.8

75

Rt506

7

0.160

0.14

0.48

Twisted

3.5

18

Rt507

1

0.510

0.2

0.51

Twisted

4.1

20

Rt508

7

0.274

0.45

0.82

Twisted

4.4

32

Rt509

1

0.810

0.5

0.81

Twisted

4.4

37

Rt510

7

0.300

0.5

0.9

Twisted

4.9

38

Rt511

1

1.020

0.75

1.02

Twisted

5.4

45

Rt512

14

0.300

1

1.26

Twisted

6.4

66

Rt513

1

1.290

1.3

1.3

Twisted

6.4

6.4

Rt514

19

0.300

1.3

1.52

Twisted

6.8

81

Rt515

40

0.200

1.25

0.25

Twisted

6.5

6.5

Rt516

21

0.300

1.5

1.55

Twisted

6.8

90

Rt517

35

0.300

2.5

2

Twisted

8.0

140

RT-601 RTD Cable
close
RT-601 RTD Cable
RT-601

RT-601 RTD Cable

Specifications

  • Conductor : Solid, Multistrand, Copper Material (Bare Copper,nickel Plated Copper, Silver Plated Copper)
  • Core Insulation : Ptfe Insulated
  • Construction : Twisted
  • Screening : Aimylar Screening With 0.50 Sq. Mm Atc Drain Wire
  • Outer Jacket : Ptfe Sheathed
  • Operating Temp. : 260 °c
  • Color Code : According To Din


Features

  • Max. Temp. Up To 260°c
  • Excellent Heat Resistant
  • Outstanding Insulating Properties ‘/ Covering Of Metal Braiding
  • High Mechanical Strength
  • Good Thermal Stability
  • Good Mechanical Strength
  • Flame Retardant
  • Passes Jss 51034 Flame Test


Available Options

  • Color Code As Per  Customer Requirement
  • Covering Of Metal Braiding
  • Asbestos Braiding For Better Chemica‘ & Heat  Resistance Purpose
CONSTRUCTION DETAILS AND DIMENSIONS

Cable Size

No.of Strands

Strand Diameter (Mm)

Area Of Conductor (Mm)

Bare Conductor Dia(Mm)

Formation

Cable Dimension(Mm) (Max)

Cable Wt (Approx) Gm/meter

Rt601

7

0.122

0.08

0.36

Twisted

2.6

16

Rt602

7

0.152

0.12

0.45

Twisted

2.8

18

Rt603

7

0.193

0.22

0.57

Twisted

3.1

24

Rt604

7

0.274

0.42

0.81

Twisted

4

26

Rt605

3

0.711

1.2

1.39

Twisted

5.6

74

Rt606

7

0.160

0.14

0.48

Twisted

3

20

Rt607

1

0.510

0.2

0.51

Twisted

3.1

27

Rt608

7

0.274

0.45

0.82

Twisted

4.2

27

Rt609

1

0.810

0.5

0.81

Twisted

4.1

36

Rt610

7

0.300

0.5

0.9

Twisted

4.3

37

Rt611

1

1.020

0.75

0.75

Twisted

4.5

48

Rt612

14

0.300

1

1.26

Twisted

5.1

58

Rt613

1

1.290

1.3

1.3

Twisted

5.2

5.2

Rt614

19

0.300

1.3

1.52

Twisted

5.6

77

Rt615

40

0.200

1.25

0.25

Twisted

5.4

5.4

Rt616

21

0.300

1.5

1.55

Twisted

5.7

83

Rt617

35

0.300

2.5

2

Twisted

7

135
