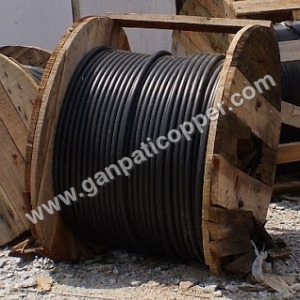

Cu Pvc Wire Armoured Pv

Cu Pvc Wire Armoured Pv
Cu Pvc Wire Armoured Pv
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Kilograms/Kilograms
  • Price Range
  • 900.00 - 950.00 INR
Product Description

Category: Rigid Cables

  • Sub Category: Armoured Cables 1.1 kV
  • Type Ref.: YWY
  • Standards: lS:1554/Pt. 1/1988

Product Features:

  • High Strength
  • Easy to Install
  • Better Fire Properties than XLPE Variant
  • Better UV Properties than XLPE Variant

Construction:

  • Class: 2 Stranded Copper Wire as per IS:8130
  • Insulation: PVC ( Polyvinyl Chloride) as per IS:5831
  • Core Identification:
  • Core: Black / Red / White
  • Core: Red, Black
  • Core: Red,Yellow, Blue
  • Core: Red,Yellow, Blue and Black
  • Inner Sheath: PVC ( Polyvinyl Chloride) ST2 Grade as IS:5831
  • Armouring: H.D.Aluminium / G.I. wire as per IS:3975
  • Outer Sheath: PVC ST2 Grade as per IS:5831

Variants:

  • FR
  • FRLS
  • 85 Degree

Technical Data:

  • Insulation Resistance: 1 X 1013 Ohm-CM
  • Bending Radius: 12 X OD (OD = Overall Diameter of Cable)
  • Voltage Rated: 650/ 1100 Volts
  • Test Voltage: a.c.3 kV (rms)
  • Temperature Range: -15°C to + 90°C
  • Short Circuit Temp.: 160° C

DIMENSIONAL TABLES, POWER CABLES - COPPER / PVC /WIRE ARMOURED I PVC TABLE -1 SINGLE CORE COPPER CONDUCTOR PVC INSULATED AND PVC SHEATHED H.D.AI.WIRE ARMOURED CABLES ACCORDING TO IS: 1554/PT 1/1988


Core Size

Stranding(Minimum No. of Strands)

Nominal Thickness of Insulation (mm)

Nominal Overall Diameter (mm)

Approx. Weight (kg/km)

Max DC Resistance

at 20°C

Current Rating (Amp)

SQ MM

1 X 4.0

7

1.3

11

180

4.61

35

1 X 6.0

7

1.3

12

215

3.08

44

1 X 10.0

7

1.3

13

270

1.83

60

1 X 16.0

7

1.3

14

330

1.15

82

1 X 25.0

7

1.5

15

460

0.725

110

1 X 35.0

7

1.5

16

575

0.524

130

1 X 50.0

19

1.7

18

740

0.387

165

1 X 70.0

19

1.7

20

970

0.268

205

1 X 95.0

19

1.9

22

1305

0.193

245

1 X 120.0

37

1.9

23

1575

0.153

280

1 X 150.0

37

2.1

25

1895

0.124

320

1 X 185.0

37

2.3

27

2275

0.0991

370

1 X 240.0

61

2.5

30.5

2915

0.0754

425

1 X 300.0

61

2.7

33

3165

0.0601

475

1 X 400.0

61

3

37.5

4525

0.047

550

1 X 500.0

61

3.4

42

5750

0.0366

590

1 X 630.0

91

3.9

47

7350

0.0283

660

1 X 800.0

91

3.9

52.8

9923

0.0221

773

1 X 1000.0

91

3.9

57.9

12038

0.0176

850


Trade Information
  • Supply Ability
  • As per demand Per Week
  • Delivery Time
  • 2-3 Days
