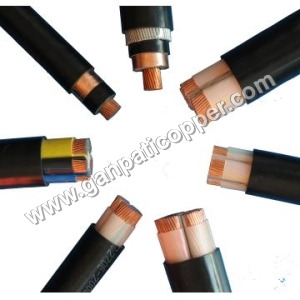

Cu Xlpe Wire Armoured P

Cu Xlpe Wire Armoured P

900.00 - 950.00 INR

Product Details:

X

Price And Quantity

  • 100 Kilograms
  • 900.00 - 950.00 INR

Trade Information

  • As per demand Per Week
  • 2-3 Days

Product Description

Category: Rigid Cables

  • Sub Category: Armoured Cables 1.1 kV
  • Type Ref.: 2XWY
  • Standards: IS: 7098/Pt.-1/1988

Product Features:

  • High Strength
  • Easy to Install
  • Good Thermal Properties than PVC Variant
  • Good Strength than PVC Variant
  • Low Current Leakage than PVC Variant

Construction:

  • Class - 2 Stranded Copper Wire as per IS:8130
  • Insulation: XLPE as per IS:7098
  • Core Identification:
  • Core: Black / Red / White
  • Core: Red, Black
  • Core: Red,Yellow, Blue
  • Core: Red ,Yellow, Blue and Black
  • Inner Sheath: PVC ST2 Grade as IS:5831
  • Armouring: H.D.Aluminium /G. I. wire as per IS:3975
  • Outer Sheath: PVC ST2 Grade as per IS : 5831

Variants:

  • FR
  • FRLS

Technical Data:

  • Insulation Resistance: 1 X 1014 Ohm - CM
  • Bending Radius: 12 X OD (OD = Overall Diameter of Cable)
  • Voltage Rated: 650 / 1100 Volts
  • Test Voltage: a.c.3 kV (rms)
  • Temperature Range: -15C to + 90C
  • Short Circuit Temp.: 250 C

TABLE 1 SINGLE CORE COPPER CONDUCTION XLPE INSULATED AND PVC SHEATHED H.D.AI.WIRE ARMOURED CABLES ACCORDING TO IS:7098/PT.1/1988


Core Size

Stranding(Minimum No. of Strands)

Nominal Thickness of Insulation (mm)

Nominal Overall Diameter (mm)

Approx. Weight (kg/km)

Max DC Resistance

at 20C

Current Rating (Amp)

SQ MM

1 X 4.0

7

0.7

10.5

165

4.61

53

1 X 6.0

7

0.7

11.5

200

3.08

67

1 X 10.0

7

0.7

12

245

1.83

92

1 X 16.0

7

0.7

13

315

1.15

124

1 X 25.0

7

0.9

14

415

0.727

182

1 X 35.0

7

0.9

15

525

0.524

226

1 X 50.0

19

1

17

690

0.387

275

1 X 70.0

19

1.1

19

910

0.268

353

1 X 95.0

19

1.1

22

1325

0.193

430

1 X 120.0

37

1.2

23.5

1485

0.153

500

1 X 150.0

37

1.4

24.5

1780

0.124

577

1 X 185.0

37

1.6

26.5

2140

0.0991

661

1 X 240.0

61

1.7

29

2700

0.0754

781

1 X 300.0

61

1.8

31.5

3325

0.0601

902

1 X 400.0

61

2

36.5

4400

0.047

1085

1 X 500.0

61

2.2

39.5

5400

0.0366

1253

1 X 630.0

91

2.4

43

6700

0.0283

1454

1 X 800.0

91

3.9

55.3

10618

0.0221

773

1 X 1000.0

91

3.9

60.4

12804

0.0176

850
